5MP White Residential Cctv Dome Cameras External 1/2.9" SONY CMOS Sensor

Product Categories
Shenzhen Winbo Digital Co., Ltd.
Contact Now

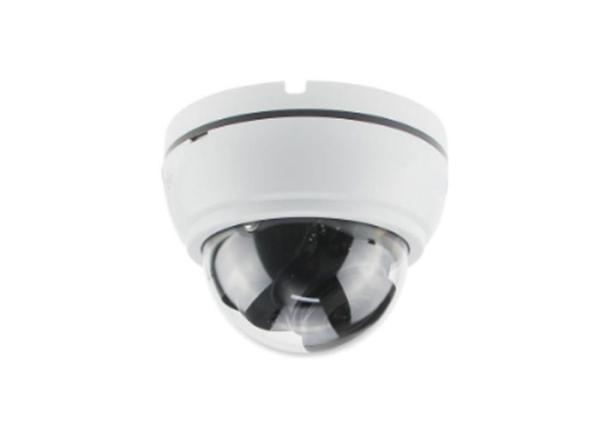

5MP White Residential Cctv Dome Cameras External 1/2.9" SONY CMOS Sensor

  • 1
  • 2

Brand Name : SAV

Model Number : SAV-LCDNK20THC500FS

Certification : CE, ROHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000

Packaging Details : Neutral factory box

Lens : 2.8-12mm Varifocal Lens

Sensor : 1/2.9"SONY Starvis Back-illuminated CMOS sensor

Infrared LED : 16µ x 8PCS

IR DIstance : 20m

WDR : YES

Housing : Plastic

Resolution : 5MP

Demenision : ￠112x 87(H) mm

Contact Now

Indoor 5MP Dome Housing Camera 2.8-12mm Varifocal Lens With SONY CMOS Sensor


Features

  • 1/2.9"SONY Starvis Back-illuminated CMOS sensor
  • TVI/AHD/CVI/CVBS 4 IN 1
  • 2.8-12mm Varifocal Lens
  • IR Distance max 20m
  • OSD&UTC support

Specifications

Camera
Image Sensor 1/2.9" SONY Starvis Back-illuminated CMOS sensor
Image Resolution 5MP
Effective Pixels 5M:2592*1944 4M:2560*1440
TV System PAL/NTSC
Electronic Shutter 1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio ≥50dB
Scanning System Progressive Scan
Lens
Focus Length 2.8-12mm
Focus Control Manual
Lens Type Varifocal
Pixels 5M Pixels
Auto Iris Support NO
Night Vision
Infrared LED 16µ x 8PCS
Infrared Distance 20M
IR Status Under 10 Lux by CDS
IR Power On CDS Auto Control
Camera Features
Starlight /
Day/Night YES
OSD Menu Language YES
White Balance AUTO / MANUAL
Gain Control AUTO
Noise Reduction DNR
Picture Adjustment YES
WDR YES
OSD Support YES
UTC YES
Dip Switch /
General
Housing Plastic
Bracket NO
Dual Voltage NO
IR Cut Filter YES
Heater NO
Audio /
Operation Temperature -10℃ ~ +50℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 500mA

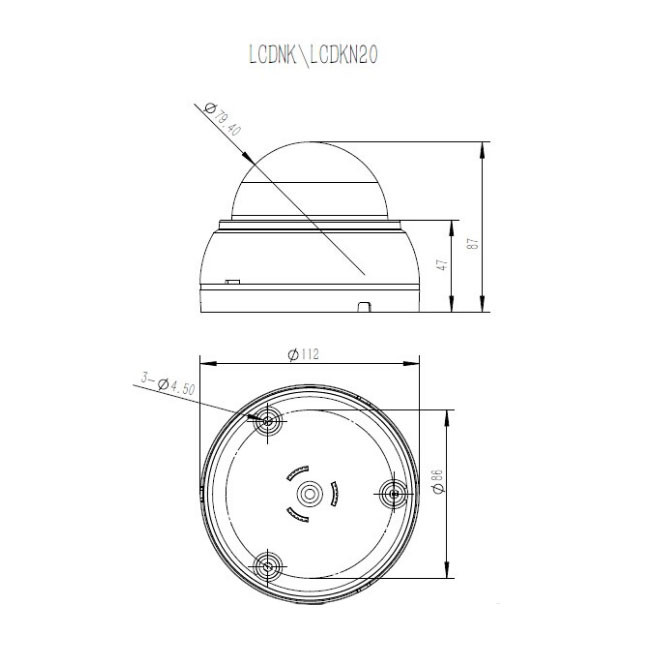

Dimension ￠112x 87(H) mm
Weight 600g



5MP White Residential Cctv Dome Cameras External 1/2.9" SONY CMOS Sensor
