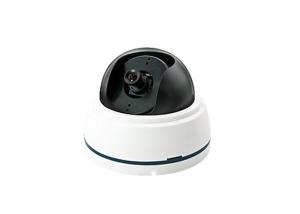

Network Outdoor Ahd 800tvl Cctv Dome Camera 3D - DNR Specially Designed WDR

Product Categories

Shenzhen Winbo Digital Co., Ltd.

Contact Now

Brand Name : SAV

Model Number : SAV-NCDEF

Certification : CE, ROHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000

Packaging Details : Neutral factory box

Lens : 3.6mm Fixed Lens

Sensor : ICX663AK + ICX662AK

OSD : YES

Power input : DC12V±1V

Material : Metal

Power Dissipation : 520mA

DNR : 3D-DNR

Demenision : 110*97mm

Contact Now

Metal Outdoor IP66 Dome 800TVL AHD CCTV Camera 3.6mm Lens Support Remote Control

Features

Function

Demist Function.Black electrical level adjust automatically and contour correction function, gray scale up to 135 level standards,effectively solve the mist
Excellent image quality,specially designed WDR, available especially under the condition of unpredictable illumination (such as building entrance,crossroad),
it needs more clearer,and easy to identify the image.

Specifications

Model	SAV-NCDEF
Board	SFV3Q
Active Pixel	P: 976582 P: 976582
Resolution	800TVL
Sensor	P:ICX663AK N:ICX662AK
Minimum Illumination	0.05 Lux Sense-Up: 0.01 Lux
Video Out	1.0Vp-p Composite Signal (75ohm)
SYNC	Internal
Gama adjust	0.45
Electric Shutter	PAL:1/50s-1/100000s NTSC:1/60s-1/100000s
S/N Ratio	52dB(min)
DNR	3D-DNR
AWB	ATW/PUSH/USER1/USER2/ANTI CR/MANUAL/PUSH LOCK
BLC	ON/OFF
OSD	YES
Power Dissipation	520mA
Power Input	DC12V±1V
Operation Temperature	Temperature -10℃～+60℃,Humidity less than 85%RH


Network Outdoor Ahd 800tvl Cctv Dome Camera 3D - DNR Specially Designed WDR
