H.265 WIFI NVR Network Video Recorder , 4 Channel Nvr Max About 300m

Shenzhen Winbo Digital Co., Ltd.
Contact Now

H.265 WIFI NVR Network Video Recorder , 4 Channel Nvr Max About 300m

  • 1
  • 2

Brand Name : WINBO

Model Number : SAV-NVR3609PG

Certification : CE,ROHS

Place of Origin : CHINA

MOQ : 10PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram,Paypal

Supply Ability : 10000PCS Per Month

Delivery Time : 5-8 Working Days for Sample Order.

Packaging Details : Neutral Factory Box

Compression Method : H.265/H.265+, H.264/H.264+

Keywords : 4CH Smart Wifi NVR

Resolution : Max 4MP

Hardisk : Max 1*6TB

Playback Resolution : 2560x1440

Wifi Range : No Obstacles 300m Max.

WIFI : YES

USB Interface : 2 USB 2.0 ports

Protocol : Onvif 2.6

Contact Now

Shenzhen 4CH H.265 WIFI Network Video Recorder Max About 300m With 4pcs RJ45

Features

  • 4CH WIFI Smart NVR
  • Third-party Network Cameras Supported
  • Up to 5MP Resolution Recording and Playback
  • HDMI and VGA Output
  • Support H.265/H.264 Video Format
  • Support 1 SATA up to 6TB Capacity

Specifications

Item 9CH Smart NVR Recorder
Model SAV-NVR3609PG
System
Main Processor ARM Cortex A7 Processor(Hi3798)
Operating System Embedded Linux
Video
Input 4xWIFI IP Camera + ONVIF Wired IP Camera (Max. 9CH IP Input)
Output 1 VGA, 1 HDMI
Audio
Input 1CH RCA Input
Output 1CH RCA Output
Audio Bit Rate 64kbps
Audio Compression standard G.711
Alarm
Sensor Input NO
Output NO
Email Alarm Support
Display
VGA Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI Resolution: (3840×2160)/ 1920×1080/1280×1024/1280×720
Display Split 9CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital Zoom yes
OSD Camera Title, Time, Video Loss, Recording, Motion Detection
Recording
Video Compression H.265/H.264
Resolution 2560x1440
Record Rate PAL:5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp
NTSC:5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp
Record Mode ManualTimerMotion Detection
Playback & Backup
Local Sync Playback 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 1CH 1080P@30fps, 1CH 960P@30fps, 1CH 720P@30fps
Decode Capacity 1CH 5MP@30fps
Remote Sync Playback YES
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital Zoom
Alarm Input USB Device/Network
Backup Mode 4ch
Remote View Support by Smart Phone
Network
Interface 1xWAN + 3xLAN (10/100Mbps Self-adaptive)
Network Functions HTTP, IPv4, TCP/IP, DNS, DHCP, NTP, DDNS
Onvif Version Support Onvif 2.4
Web Browser IE6-11, Firefox, Chrome (Under Windows System)
CMS Software Support Windows XP / Windows Vista / Windows 7/ Windows 8
Cloud Support(P2P) yes
Incoming Bandwidth 60MB
Smart Phone iPhone, iPad, Android, Android Pad
POE /
Wifi YES
Wifi Range No Obstacles 300m Max.
Hard Disk Driver
Interface Type 1 SATA Interface
Capacity Up to 6TB capacity
General
Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian
USB Interface 2 USB 2.0 Interfaces
Power Supply DC12V
Working Environment -10~55℃/10~90%
Dimension(W×D×H) 260*215*43(mm)
Weight 2.0KG (without HDD)

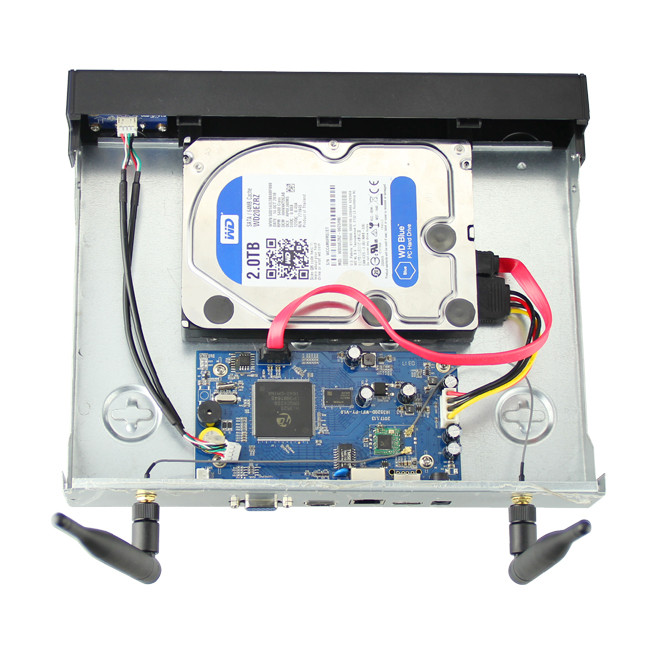

Product Image
H.265 WIFI NVR Network Video Recorder , 4 Channel Nvr Max About 300mH.265 WIFI NVR Network Video Recorder , 4 Channel Nvr Max About 300m
