| model |

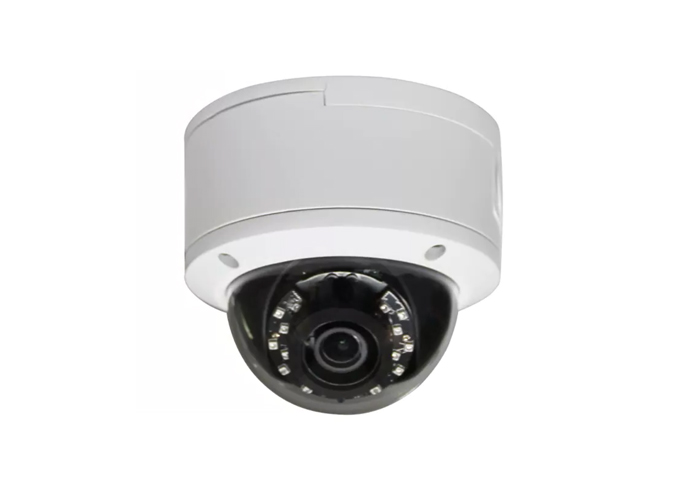

SAV-MIV612BR-H3 |
| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Signal System |
PAL/NTSC |
| Min. Illumination |
Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter time |
1/25 s to 1/100,000 s |
| Lens |
2.8-12mm auto focus and motorized zoom lens |
| Day& Night |
IR cut filter with auto switch |
| Digital noise reduction |
3D DNR |
| WDR |
Digital WDR |
| Motion Detection |
Support |
| Privacy Protection |
Support(4 Areas) |
| Compression Standard |
| Video Compression |
H.265/H.264/MJPEG |
| Video bit rate |
32Kbps~12Mbps(CBR/VBR Selectable) |
| Triple Streams: |
Yes |
| Image |
| Max. Image Resolution |
1920×1080@25/30fps(50HZ/60HZ) |
| Frame Rate |
50Hz: 25fps (1920*1080)
60Hz: 30fps (1920*1080) |
| Sub Stream |
50Hz: 25fps (640 × 360, 352 × 288)
60Hz: 30fps (640 × 360, 352 × 288) |
| Third Stream |
50Hz: 25fps (640 × 360, 352 × 288)
60Hz: 30fps (640 × 360, 352 × 288) |
| Image Enhancement |
BLC/3D DNR |
| Image Settings |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| General Function |
Anti-Flicker, heartbeat, mirror,
password protection, privacy mask, Watermark |
| Day/Night Switch |
Auto/Scheduled |
| Network |
| Protocols |
HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, IP Search(Support P6S IP camera, DVR, NVS and etc |
| System Compatibility |
ONVIF 2.4/P6S |
| On-line Viewing |
Max. Support 8 Users Simultaneously |
| Interface |
| Communication Interface |
1 RJ45 10M / 100M Ethernet interface |
| General |
| Operating Conditions |
-10 °C ~ 60 °C
Humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 10%, PoE |
| Power Consumption |
12 VDC ± 10%, Max Power Comsumption Less Than 12W(When the infrared lamps turn on) |
| Weather Proof |
IP66 |
| IR Range |
Up to 30m |
| Weight |
0.48KG |
