4 Channel 8MP Poe Home Security Camera System 1080P Strong Compatible Ability

Shenzhen Winbo Digital Co., Ltd.
Contact Now

4 Channel 8MP Poe Home Security Camera System 1080P Strong Compatible Ability

Brand Name : WINBO

Model Number : SAV-PND1504K

Certification : CE,ROHS

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000

Delivery Time : 5-8 work days

Packaging Details : Neutral Factory Box

Operating System : Embedded Linux

Video Compression : H.265 / H.264

Video Resolution : MAX 8MP

Camera : Metal Dome

Power input : DC 48V

Waterproof : IP66

IR distance : 35M

Channel : 4CH

Contact Now

1080P P2P Waterproof Metal Dome PoE Camera Kit Built in 15.6inch LCD PoE NVR

Features

* Full HD Video: 4*1080P/3M/4M/5M/8M

* No need to configure IPC, plug and play

* Support multi language switch

* IPC screen preview without add IPC

* Online upgrade function, NVR can also upgrade IPC

* Dual stream

* Strong compatible ability ,key to add IPC in onvif

* A-POE feature: Power and Video via One Cable

* P2P

* Mobile viewing, iphone&android app

* Free DDNS :www.e-seenet.com,no need DDNS setting

Speciation

Model SAV-PND1504K
Video input Video input 4CH x 1080P/3M/4M/5M/8M,RJ45connector
Switch Build-in switch
Video output HDMI output 1 HDMI connector, resolution: 1920x1080P/60Hz; 4K/30Hz
VGA output 1 VGA connector, resolution: 1920x1080P/60Hz
Video coding Video Compression H.265/H.264
specification Record&playback 4CH 8MP Record,1CH 8MP Playback
4CH 1080P record, 2CH 1080P playback
4CH 960P record, 4CH 960P playback
4CH 720P record, 4CH 720P playback
Video coding resolution 1080P/3M/4M/5M/8M Record
Frame Rate (FPS) PAL: 25 FPS;NTSC :30 FPS
Variable bitrate 256 Kbps -- 8.0 Mbps, image quality optional
Stream type AV stream / video stream, support VBR/CBR
Dual stream support
Audio Compression G.711A
Hard Disk Interface Type 1 SATA Interface
Driver Capacity Up to 4TB capacity for each disk
Backup USB backup and internet backup
External Network Interface RJ45 10M / 100M adaptive Ethernet interfaces
Interface USB Interface 2 USB 2.0 interfaces(support upgrade, backup, mouse)
Serial Interface 1RS-485 interface
General Working Temperature -10°C ~ +55°C (14 °F ~ 131 °F)
Operating System Embedded Linux
Software turn off not support
Operate device IR remote and mouse
Power input DC 48V/1.5A;provide 48V power to IPC
Metal Dome Camera
Model Number 1MP 1.3MP 2MP
Dual-stream Main stream:720P 25fps Main stream:960P 25fps Main stream:1080P 25fps
Sub stream:640*360 25fps Sub stream:640*360 25fps Sub stream:640*360 25fps
Video Compression H.265/H.264
Lens 3.6mm or 6mm
Image resolution 1280×720, 640×360 1280×960, 640×360 1920×1080, 640×360
IR distance 35M
Day/Night IR Cut Auto Switch
Free DDNS www.e-seenet.com
Waterproof IP66
Video bite rate 64Kbps-4096Kbps continuously-adjustable
Protocol/Network function RTSP, UPnP, PPPOE, DDNS
Web Browser IE,Chrome, Safari, firefox
Mobile surveillance Support Iphone, Andriod
Network RJ45 10M/100M adaptive Ethernet interface
Operating Environment -10℃- +55℃/10%-90%
Power Supply POE power

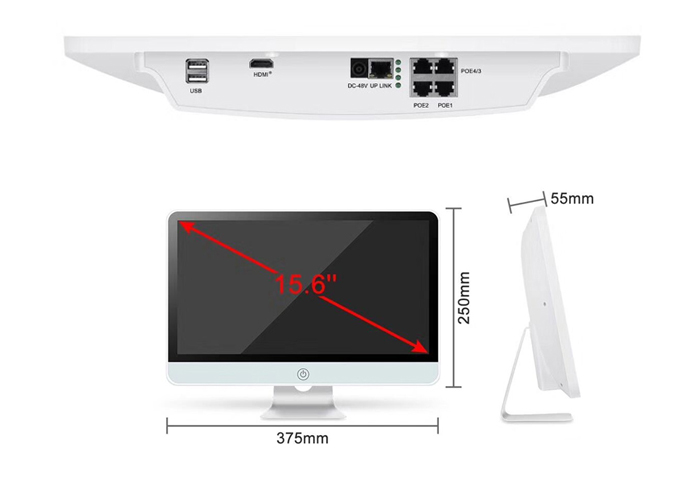

Drawing

4 Channel 8MP Poe Home Security Camera System 1080P Strong Compatible Ability
