1080P NVR Poe Surveillance Camera System Without Power Plug 35M IR distance

Product Categories
Shenzhen Winbo Digital Co., Ltd.
Contact Now

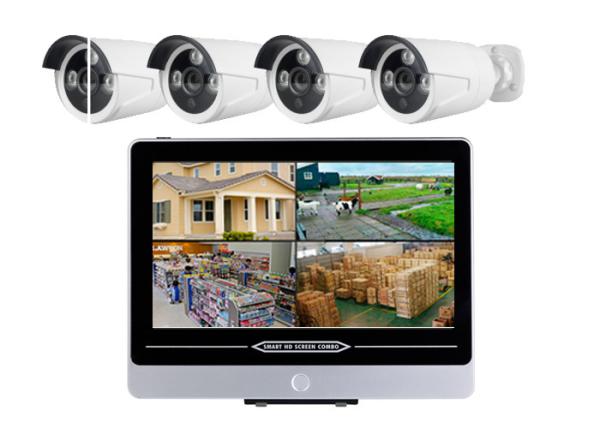

1080P NVR Poe Surveillance Camera System Without Power Plug 35M IR distance

  • 1
  • 2

Brand Name : WINBO

Model Number : SAV-PN1254K

Certification : CE,ROHS

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000

Delivery Time : 5-8 work days

Packaging Details : Neutral Factory Box

Recorder : 4CH 12.5nch LCD NVR

Compression : H.265

Resolution : MAX 8MP

Hardisk : 3.5 inch

Power input : DC 48V

Waterproof : IP66

IR distance : 35M

Power : Power and Video via One Cable

Contact Now

Without Power Plug 1080P PoE IP Camera Kit Built in 1.5nch LCD Screen PoE NVR

Features

  • No need to configure IPC, plug and play
  • Full HD Video: 4*1080P/3M/4M/5M/8M
  • Online upgrade function, NVR can also upgrade IPC
  • P2P Service
  • Online upgrade function, NVR can also upgrade IPC
  • Dual stream,IPC screen preview without add IPC
  • Strong compatible ability ,key to add IPC in onvif
  • A-POE feature: Power and Video via One Cable
  • Support multi language switch
  • Mobile viewing, iphone&android app
  • Free DDNS :www.e-seenet.com,no need DDNS setting

Application

It can be used in various kinds of surveillance scenes, such as home, office, supermarket, garden, etc.

Speciation

Model SAV-PN1504K
Video input Video input 4CH x 1080P/3M/4M/5M/8M,RJ45connector
Switch Build-in switch
HDMI output 1 HDMI connector, resolution: 1920x1080P/60Hz; 4K/30Hz
VGA output 1 VGA connector, resolution: 1920x1080P/60Hz
Video coding Video Compression H.265/H.264
specification Record&playback 4CH 8MP Record,1CH 8MP Playback
4CH 1080P record, 2CH 1080P playback
4CH 960P record, 4CH 960P playback
4CH 720P record, 4CH 720P playback
Video coding resolution 1080P/3M/4M/5M/8M Record
Frame Rate (FPS) PAL: 25 FPS;NTSC :30 FPS
Variable bitrate 256 Kbps -- 8.0 Mbps, image quality optional
Stream type AV stream / video stream, support VBR/CBR
Dual stream support
Audio Compression G.711A
Hard Disk Interface Type 1 SATA Interface
Driver Capacity Up to 4TB capacity for each disk
Backup USB backup and internet backup
External Network Interface RJ45 10M / 100M adaptive Ethernet interfaces
Interface USB Interface 2 USB 2.0 interfaces(support upgrade, backup, mouse)
Serial Interface 1RS-485 interface
General Working Temperature -10°C ~ +55°C (14 °F ~ 131 °F)
Operating System Embedded Linux
Software turn off not support
Operate device IR remote and mouse
Power input DC 48V/1.5A&；provide 48V power to IPC
IP Camera Specification
Model Number 1MP 1.3MP 2MP
Dual-stream Main stream:720P 25fps Main stream:960P 25fps Main stream:1080P 25fps
Sub stream:640*360 25fps Sub stream:640*360 25fps Sub stream:640*360 25fps
Video Compression H.265/H.264
Lens 3.6mm or 6mm
Image resolution 1280×720, 640×360 1280×960, 640×360 1920×1080, 640×360
IR distance 35M
Day/Night 35 meters IR Nightvision
Free DDNS www.e-seenet.com
Waterproof IP66
Video bite rate 64Kbps-4096Kbps continuously-adjustable
Protocol/Network function RTSP, UPnP, PPPOE, DDNS
Web Browser IE,Chrome, Safari, firefox
Mobile surveillance Support Iphone, Andriod
Network RJ45 10M/100M adaptive Ethernet interface
Operating Environment -10℃- +55℃/10%-90%
Power Supply POE power


1080P NVR Poe Surveillance Camera System Without Power Plug 35M IR distance
