| LCD | Item series | SAV - HD3600ADH Plus series |
| Display | New 7 inch TFT-LCD screen ,1280*800 resolution |

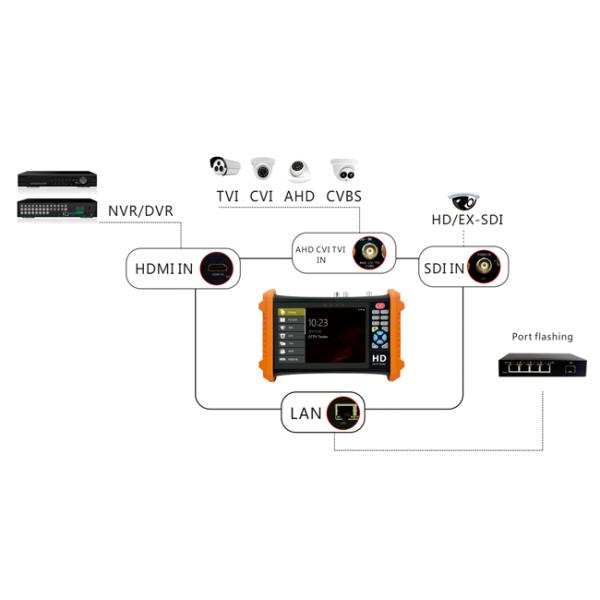

| Video Mode | CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
| PTZ control,RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
| CVBS loop test | the tester send and receive color bar generator signal , check BNC cable |

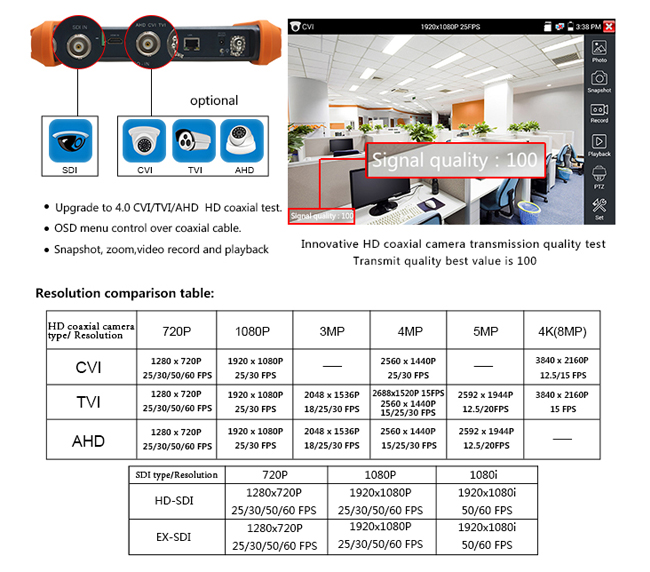

| Coaxial HD test | 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu |
| 8MP CVI camera test: 3840 x 2160P 12.5/15 FPS,UTC control /call OSD menu |
| 5MP AHD camera test:2592 x 1944P 12.5/20FPS, UTC control /call OSD menu |
| HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS |
| HDMI Input | 1 channel HDMI input, support 1080P |
| Zoom Image | 4x zoom, to enlarge image, screen snapshot, record ,save ,view and record and play back |
| Analog Video out | color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable |
| HDMI output | 1 channel HDMI output, support 1920*1080P |
| Power output | 12V/3A power output | Output DC 12V/3A power out ,supply temporarily power for the camera |
| | 5V/2A power output | USB 5V 2A power output, as a power bank |
| Cable test | UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen |
| Network test | Trace route, Link monitor ,DHCP server, port flashing, Ping test |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| Data monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal |
| External power supply | DC 12V 2A |
| Battery | Built-in 7.4V Lithium polymer battery, 5000mAh |
| Rechargeable | After charging 5-6 hours, normal working time 10 hours |
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish,Spanish etc |
| Auto off | 5-30 (mins) |
| Working Temperature | -10℃---+50℃ |
| Working Humidity | 30%-90% |
| Dimension/Weight | 255mm x 160mm x 46mm / 0.95Kg |
| Below are customizable functions, HD-3600ADH PLUS + C, HD-3600ADH PLUS +S ,HD-3600ADH PLUS+C+M,HD-3600ADH PLUS+S+C+M |
| S* | HD SDI/EX SDI camera test ,support 1080P 50/60 FPS |
| C* | Cable tracer :search BNC cable, network cable and telephone cable from the mess cable |
| L* | Video level meter :PEAK ,SYNC signal level, color burst chroma level measurement |
| M* | Digital multimeter: :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement |
| O* | Optical power meter, Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ～+10 dBm, for optical power testing and Fiber link loss relative measurement |
| V* | Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber's bending and breakage, test range 10KM |
| T* | TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable's length and short circuit. measurement range 1.2KM |
